Digital Display Ground Resistance 70A IEC Test Equipment

Name: Digital Display Ground Resistance 70A IEC Test Equipment
Brand: HongCe
Price: 1 USD

Buy cheap Digital Display Ground Resistance 70A IEC Test Equipment product

Brand Name : HongCe

Model Number : RK2678XM

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiatable

Payment Terms : T/T

Supply Ability : 10 set /month

Delivery Time : 30 days

Packaging Details : Carton box

Standard : IEC 60884-1 2013 clause 11 etc.

Test current : 30A/70A

Current accuracy : ±5%

Measure range : 0~200/600mΩ

Alarm range : 50~600mΩ

Model : RK2678XM

Contact Now

IEC 60884 IEC Test Equipment Ground Resistance Measurement Tester AC 30A 70A

Standard: IEC 60669.1 clause 11, IEC 60884-1 2013 clause 11

Application: This device is use to measure the resistance between equipment shell and ground line of all kinds of electric motors, electric appliances, instruments and meters, household appliances and others, check whether the resistance in compliance with the requirements.

Test sample: Internal components of electrical equipment

Feature: Detect the (contact) resistance between the exposed parts of the electrical equipment and the general grounding terminals.

Parameters:

Model	RK2678XM(30A)	RK2678XM(70A)
Test current	AC: 5~32A	AC: 5~70A
Current accuracy	±5%
Measure range	10~200 mΩ	200~600 mΩ
Resistance resolution	0~200mΩ:0.1mΩ 200～60Mω: 1mΩ
Resistance accuracy	±5%±3digit
Test time	0~999s
Alarm range	50~600mΩ
Display	LED digital display(current, resistance, time)
Option	Unqualified warning
Power supply	220V±10%, 50Hz±5%
Work environment	0℃~40℃, ≤85%RH
Dimension	320×280×180mm
Weight	10kg	15kg
Accessory	Test line, power cord

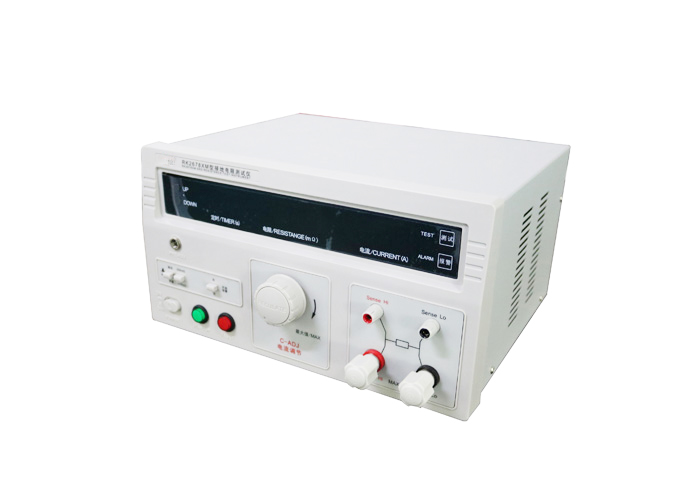

Picture forreference:
