IEC 60335-2-15 clause 22.103 Electrical Appliance Tester Cordless Kettle Insert And Withdraw Endurance Tester
The Cordless Kettle Insert And Withdraw Endurance tester is designed and manufactured according to the standard IEC60335-2-15 clause 22.103, used to test the service life of base contact for cordless kettles. This device can be preset the number of trials (up to 999999 times), can do load test and non-load test. It can automatically record the numbers of test times and the number of conduction times during the testing, when the actual test times reaches to the preset test times, the device will automatically shut down.
Standard: IEC 60335-2-14 Clause 22.103, IEC60335-2-3 Clause 22.105, IEC60335 -2- 15 clause 22.103 and etc.
Application: Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.
Test sample: Cordless electric kettles, cordless irons, cordless blenders
Feature: Make the two contacts of cordless electric kettles, cordless irons, cordless blenders to be Short-circuit, and supply 1.1 times of rated voltage to cordless electric kettle/ iron/ blender, then process the endurance test that the test sample’s body insert into and plug from the base at the speed of 10 times/min. And then process a certain times of insert & plug endurance test without load voltage. The test device can be connected to external load or has built-in load (optional), the test cycles can be preset (maximum 999999),the test system can record the test cycles and conduction cycles automatically during test, when the preset test cycles have been completed, the test device will stop testing automatically.
Parameters:
| Parameters / Model | HJ0613 | HJ0613A |
| Input Power | AC220V 50HZ | AC220V 50HZ |
| Control | Electrical control, Buttons operation | PLC control, touch screen operation |
| Station | Single station | Single station |
| Drive Method | motor-driven | motor-driven |
| Test Sample | Cordless water kettle | Cordless water kettle/iron/blender |
| Insert & Plug Stroke | 100mm | 0-100mm,can be preset on touch screen |
| Insert & Plug Speed | 0-30cycles/min, frequency control | 0-30 times/min, can be preset on touch screen |
| Test Cycles | 0-999999,can be preset | 0-999999,can be preset on touch screen |
| Conduction Cycles | 0-999999,can be displayed | 0-999999, can be displayed |
| Mechanical action | insert & plug action | insert & plug action and kettle switch open and close movement |
| Load | External 0-250V,0-15A | Built-in 0-250V,0-15A |
| Sample judgment | Judge conduction according to the current | Judge conduction according to the current |
| Dimensions and Weight | 1000×500×1200mm,130kg | 1000×500×1200mm,200kg |
Picture for reference:

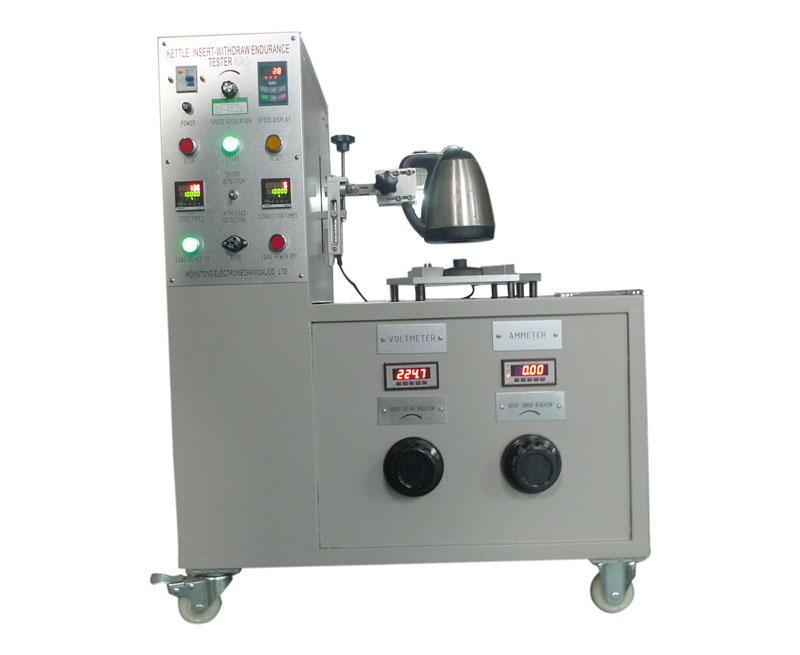

HJ0613

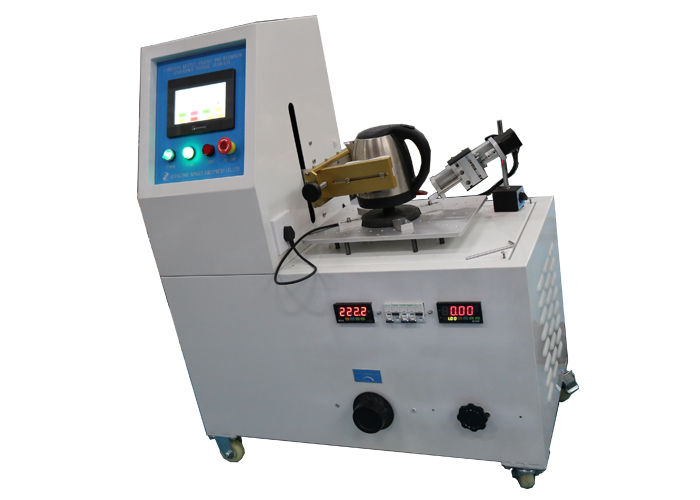

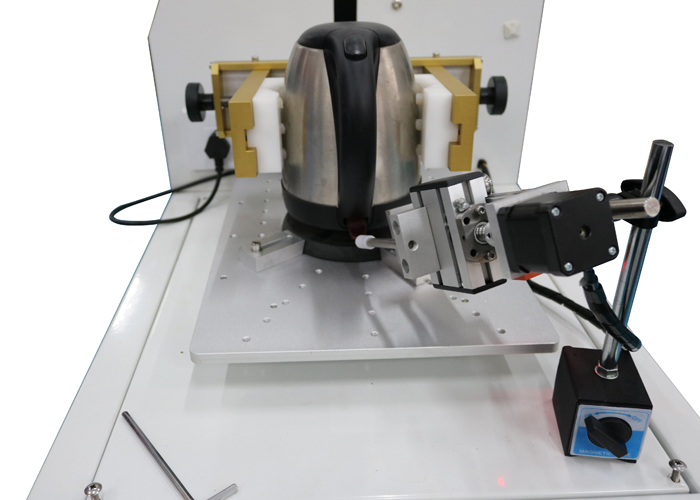

HJ0613A
