IEC 60884-1 Hi-Pot Voltage Withstand Tester 5kv 10kv 1000VA

Name: IEC 608841 HiPot Voltage Withstand Tester 5kv 10kv 1000VA
Brand: HongCe
Price: 1 USD

Buy cheap IEC 60884-1 Hi-Pot Voltage Withstand Tester 5kv 10kv 1000VA product

Brand Name : HongCe

Model Number : RK2671CM

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20 set per month

Delivery Time : 7 days

Packaging Details : Carton Box

Output Voltage Range : 0~5kv/10kv

Voltage Resolution : 10V

Leakage current (AC) : 0-2/20/100mA

Current Accuracy : ±5%

Display Form : LED Digital display

Power Requirements : 220V±10%,50Hz±5%, below 30KW

Contact Now

IEC 60884-1 IEC Test Equipment Hi-pot (Voltage Withstand) Tester 5kv/10kv 1000VA

Standard: IEC 60669.1 clause 16, IEC 60884-1 2013 clause 17

Application: This device is use for hi-pot and leakage current tests, to detect voltage strength of home appliances or similar products

Test sample: Household appliances, lighting appliances, electric heating devices, electric wires and cables, etc

Feature: Can intuitive, accurate and fast test the breakdown voltage, leakage current and other electrical safety performance indicators of various objects, and can be used as a high voltage source to test the performance of components and the whole machine.

Parameters:

Model	RK2671AM	RK2671BM			RK2671CM
Output Voltage Range(AC/DC)	0~5kv/10kv	0~5kv/10kv			0~5kv/10kv
Voltage Resolution	10V	10V			10V
Voltage Accuracy	±5%	±5%			±5%
Leakage current (AC)	0-2/20mA	0-2/20/50mA			0-2/20/100mA
Leakage current (DC)	0-2/10mA	0-2/20mA			0-2/20mA
Current Resolution	0~2mA:1μA 2~20mA:10μA	0~2mA:1μA 2~20mA:10μA 20~50mA:100μA			0~2mA:1μA 2~20mA:10μA 20~100mA:100μA
Current Accuracy	±5%
Measurement Time Setting	0s-99s,Continuously setting and manual
Maximum output power	200VA	500VA		1000VA
Capacitor of Transformer	750VA	1500VA		5000VA
Display Form	LED Digital display
Power Requirements	220V±10%,50Hz±5%, below 30KW
Dimension	390310200mm		443390200mm			443390200mm
Weight	15kg		27kg			32kg

Picture view:

Product Tags:

1000VA IEC Test Equipment

10kv Voltage Withstand Tester

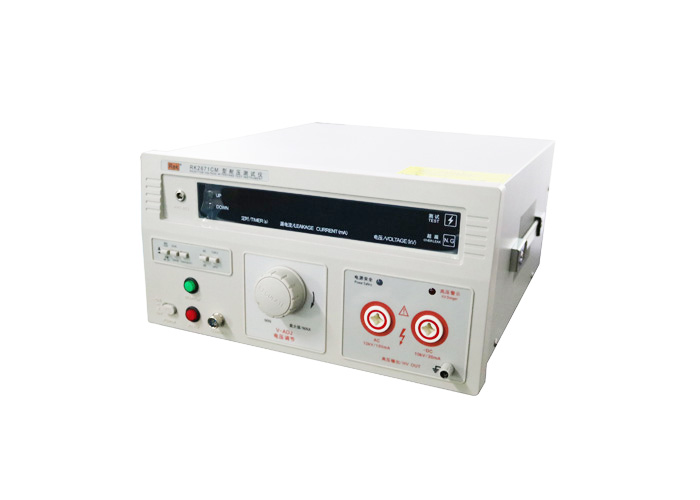

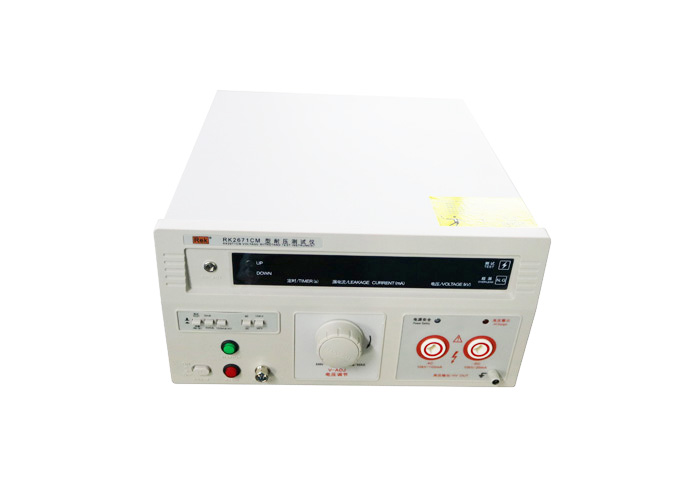

IEC 60884-1 Hi-Pot Voltage Withstand Tester 5kv 10kv 1000VA Images
