6.3 / 12.5mm Ingress Protection Test Equipment Handheld Jet Nozzle Tester IEC60529 IPX5 IPX6

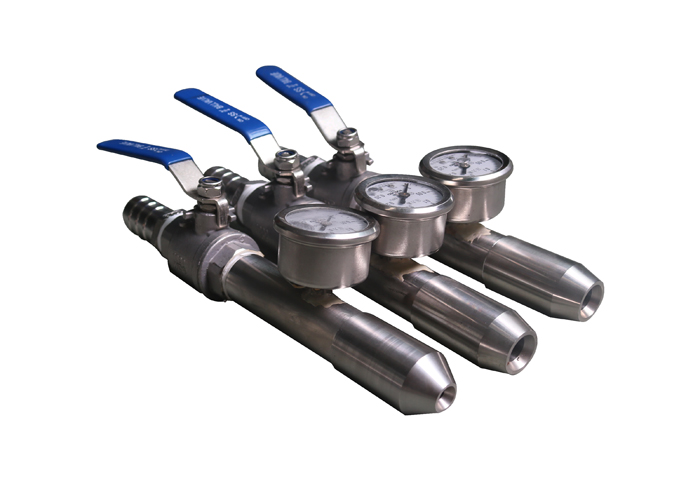

Product information: Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
Working principle:
Working principle: The test device simulates that when the test samples suffer water flow as 12.5 +0.625L/min or 100 + 5 L/min in a certain period of time, thus to verify the waterproof performance of the sample’s enclosure.
The test time is calculated according to the sample surface area: 1min/m², but the short test time is not less than 3min.
Ingress Protection Test Equipment

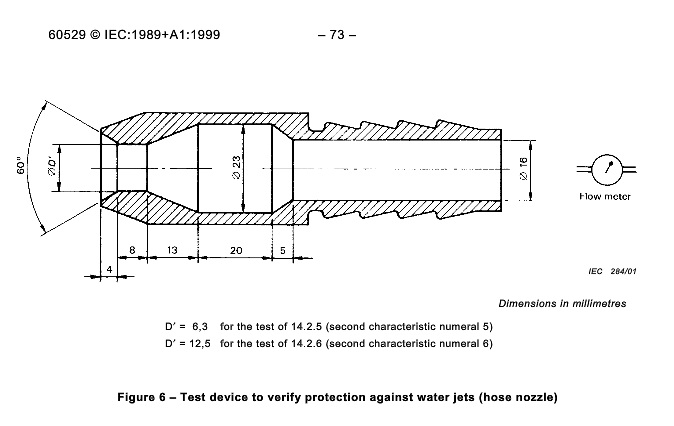

Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX5 and IPX6.
Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)
Feature:With pressure gauge, it can be used by replacing the nozzle, it also can match the complete set of waterproof system.
Parameters:
| Model | HH0804-1 | HH0804-2 |
| Item | IPX5 | IPX6 |
| The nozzle diameter | Ф6.3mm | Ф12.5mm |
| Water flow | 12.5±0.625L/min,Flow meter is adjustable | 100±5 L/min,Flow meter is adjustable |
| The distance from jet nozzle to enclosure | 2.5~3m |
| Testing time | Not less than 1min/m²(not less than 3 mins) |
| Pressure gauge | 0~0.25MPa |
| Site requirements | Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation |
| Water supply | Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment | Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment |
