IEC 60745-2-5 Test Probe A With φ35*5 Stop Face For Circular Saws Test

IEC 60745-2-5 Test Probe A With φ35*5 Stop Face For Circular Saws Test

Test method: IEC60745-2-5 clause 19.101.2.2 The upper guard on the side opposite the motor need not completely cover the blade. The perpendicular projection of the upper guard on to the blade shall cover at least the smallest recommended blade-cutting edge zone. The space between the upper guard and the blade shall be designed such that the test probe 'a' of Figure 105 when inserted at any angle and to the depth allowed by its stop, shall not be able to contact the saw blade teeth tips of the recommended blade, as illustrated in Figure 106. Test Finger Probe

Standard: IEC 60745-2-5 : Particular requirements for circular saws, clause 19.101.2 and Figure 105

Application: This probe is applicable to verify the upper guard protection against to touch the blade.

Test sample: Circular saws                           Test Finger Probe

Feature: Apertures in the guarding system above the guide plate, unless otherwise specified below, shall be designed such that the test probe ‘a’ of figure 105, when inserted at any angle and to the depth allowed by its stop, shall not be able to contact the cutting edge zone of any recommended blade.                                                                                    Test Finger Probe

Parameters:

1. Probe: diameter 12mm, length 50mm, R6 hemisphere end

2. Stop: diameter 35mm, thickness 5mm

3. Handle: diameter 8mm, length 30mm                                                                                             Test Finger Probe

Picture for reference:

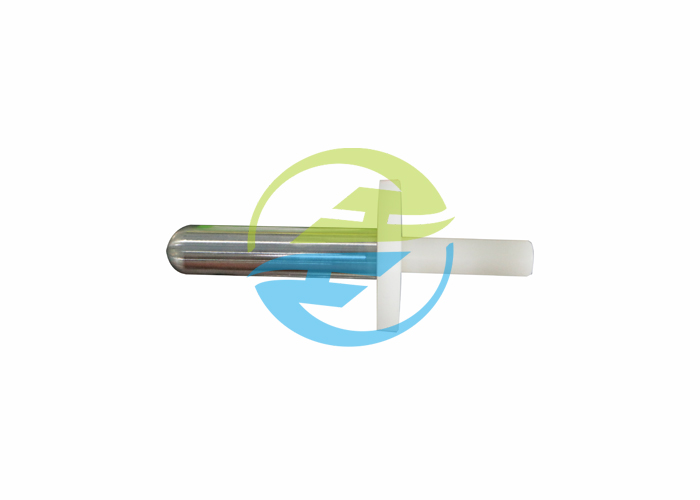

IEC 60745-2-5 Test Probe

Circular Saws Test Probe

IEC 60745-2-5 Test Probe A With φ35*5 Stop Face For Circular Saws Test Images
