IEC60335-2-6 Figure 102 Vessel For Hotplates Test - Steel Vessels - Thickness 2±0.5mm

IEC60335-2-6 Figure 102 Vessel For Hotplates Test - Steel Vessels - Thickness 2±0.5mm

Standard: This device meets the standard of IEC60335-2-9 clause 3.1.9.108 figure 104,Household and similar electrical appliances-Safety-Part 2-9:Particular requirements for grills, toasters and similar portable cooking appliances, IEC60335-2-6 clause 3.1.9.101 Figure 102, IEC60335-2-14 Clause 3.1.9.102                Electrical Appliance Tester

Application: It is used to simulate the vessel is placed on the hotplates in normal operation.

Test sample: Hotplates.

Parameters:

Table 101-Quantity of liquid in the vessel

NOTE: The maximum concavity of the vessel is to be not more than 0.05 mm. The base of the vessel is not to be convex.           Electrical Appliance Tester

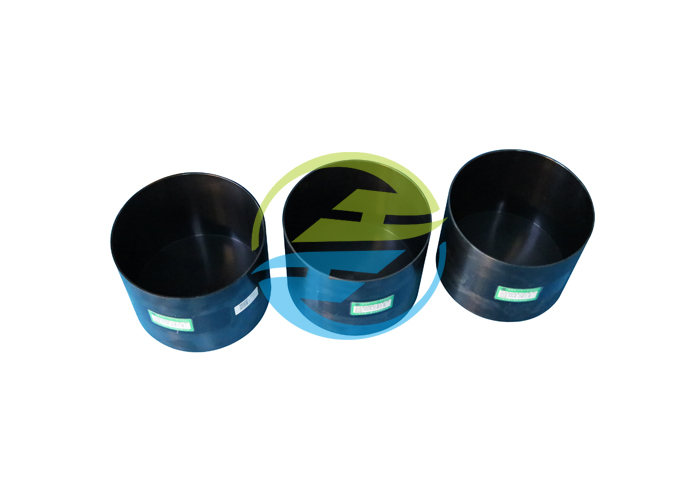

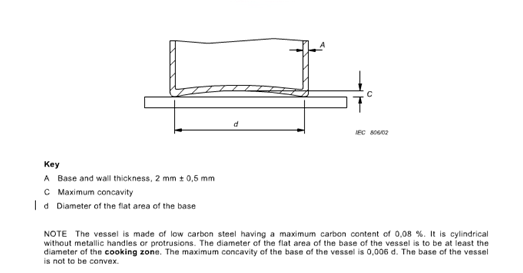

Steel vessels: The vessel is made of low carbon steel having a maximum carbon content of 0.08%. It is cylindrical without metallic handles or protrusions. The diameter of the flat area of the base of the vessel is to be at least the diameter of the cooking zone. The maximum concavity of the base of the vessel is 0.006d. The base of the vessel is not to be convex. A3 low carbon steel, surface: black oxidating. meet the requirements of table 101 quantity of liquid in the vessel and figure 104 parameters requirement (Φ110mm, Φ145mm, Φ180mm, Φ220mm, Φ300mm,1 set with 5 pcs), mainly used in cooking oil heating test.

Figure 102 Hotplates Test Vessel

IEC 60335-2-6 Hotplates Test Vessel

110mm Diameter Hotplates Test Vessel

IEC60335-2-6 Figure 102 Vessel For Hotplates Test - Steel Vessels - Thickness 2±0.5mm Images
