Length 100mm Diameter 1mm Test Probe D With 1 N Force Scale Display IEC60529

Name: Length 100mm Diameter 1mm Test Probe D With 1 N Force Scale Display IEC60529
Brand: HongCe
Price: 1 USD

Buy cheap Length 100mm Diameter 1mm Test Probe D With 1 N Force Scale Display IEC60529 product

Brand Name : HongCe

Model Number : HT-I04T

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 3 days

Packaging Details : Aluminum box

Name : Test Probe D With Force

Model : HT-I04T

Warranty : 1 Year

Stop Face : 35mm

Stop Face Material : Nylon

Rigid Test Wire : 100mm

Diameter : 1mm

Force : 1N

Contact Now

Length 100mm Diameter 1mm - Test Probe D With 1 N Force Scale Display IEC60529

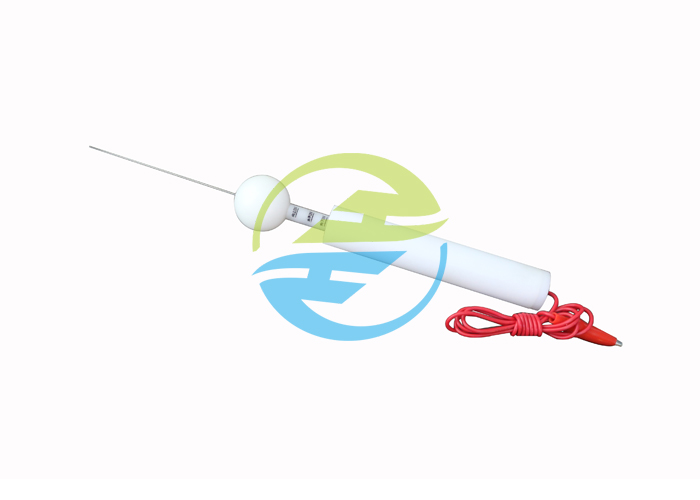

The 1mm test rod meets IEC61032 figure 4 test probe D and EN Standards including IEC60529 for IP4 and suffix D codes. It is used to verify the protection of persons against access to hazardous parts. Also it is used to verify the protection against access with a tool. The handle and stop face are made of nylon. The rod is made of stainless steel, with dynamometer.

Product information:

This probe conforms to the standard requirement of IEC61032 figure 4 test probe D and IEC 62368-1 Figure V.5, IEC 60065:2014 clause 9.1.4, and etc. This rod probe is intended to verify the protection of persons against access to hazardous parts. It is also used to verify the protection against access with a wire.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.

Main specification and corresponding technical parameters:

Model	HT-I04T
Name	Test rod probe with force
Diameter of the metal wire	Ф1+0.05 0
Sphere diameter	SФ35±0.2
Handle diameter	Ф10
Probe length	100±0.2
Handle length	----
Force	With force of 1N
Applied standard	IEC60529
