IEC 60884-1 Fig 8 Plug Socket Tester Compression Testing Machine With 2PCS 150N Weights

IEC 60884-1 Fig8 Plug Socket Tester Compression Testing Machine With 2PCS 150N Weights

IEC60884-1 Clause 24.5

The specimens are subjected to a compression test as shown in figure 8, the temperature of the pressure plate, of the base and of the specimens being (23 ± 2) °C and the force applied being 300 N.
The specimens are first placed in position a), as shown in figure 8, and the force is applied for 1 min. They are then placed in position b), as shown in figure 8, and again subjected to the force for 1 min.                             Plug Socket Tester
The specimens are removed from the test apparatus and after 15 min they shall show no damage within the meaning of this standard.

Standard: IEC 60884-1 2013 clause 10.1, 24.5 and figure 8

Application: This device is use for testing the compression resistance performance of plug, check whether the mechanical strength of plug comply with standard requirements.                  Plug Socket Tester

Test sample: Plugs

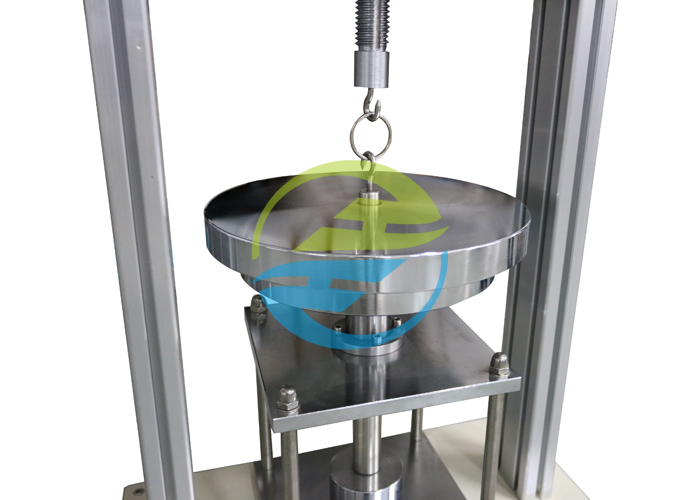

Feature: This device applying compression force 300N by weights. The temperature of the pressure plate, of the base and of the specimens being 23±2℃, compress the plug in two position show as figure 8a) and 8b), each position for 1min.                      Plug Socket Tester

Parameters:

150N Plug Socket Tester

Fig 8 Plug Socket Tester

1 Station Compression Testing Machine

IEC 60884-1 Fig 8 Plug Socket Tester Compression Testing Machine With 2PCS 150N Weights Images
