Endurance Switch Tester

Name: Endurance Switch Tester
Brand: HongCe
Price: 1 USD

Buy cheap Endurance Switch Tester product

Brand Name : HongCe

Model Number : SLT-5

Certification : CNAS

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 30 days

Packaging Details : Plywood

Price : Negotiatable

Work station : 5

Drive mode : Servo motor

Operation interface : 7 inch color LCD touch screen

Control system : PLC, brand : Mitsubishi

Contact Now

Automotive Car Switches Endurance Durability Test Equipment

Product information

The test apparatus is designed and manufactured according to IEC60884-1, IEC61058-1,

IEC60669-1standards and etc. It is applicable for switches (≤50A) breaking capacity and normal operation life test of household and similar fixed electrical installation electrical device. The purpose is assessing whether the switch is able to withstand the normal use of mechanical damage and electrical fatigue damage, and whether the contact points has adhesion phenomenon, long-term closed or disconnected phenomena, to examine whether the test samples excessive worn and have other harmful consequences. It is special test equipment for automotive switches electrical endurance test.

Technical parameters

Parameters Name	Parameter Data
Power	AC110V, 60Hz or 220V, 60Hz
Work station	5 work stations, three linear stations, three rotary station
Operation interface	7 inch color LCD touch screen
Drive mode	Servo motor
Control system	PLC, brand : Mitsubishi
Test times	0～999999 times, can be preset
Conduction time	0～999.9s, can be preset
Break time	0～999.9s, can be preset
Test angle	0-360°, can be preset
Test stroke	Rotary switch : 1~359°, adjustable Toggle switches: 0~100mm, adjustable Button switch:0~150mm, adjustable
Test speed	Rotary switch : 1~359°/s, adjustable Toggle switches: 0~100mm/s, adjustable Button switch:0~150mm/s, adjustable
Test environment	Atmospheric pressure 80 ~ 106kpa; Ambient temperature 5 ~ 40℃; Relative humidity (20 ~ 90)%RH; Use place: no violent shaking, no vibration, no electromagnetic interference, no dust, noexplosive or corrosive gas, good heat dissipation
Dimensions	LWH=1800mmx720mmx700mm
Weight	150KG

Endurance Switch Tester

We can offer OEM service and best solution to meet our customers' testing requirements, you are welcome here if there is any inquires, we will be at your service!

Product Tags:

mechanical switch tester

switch life tester

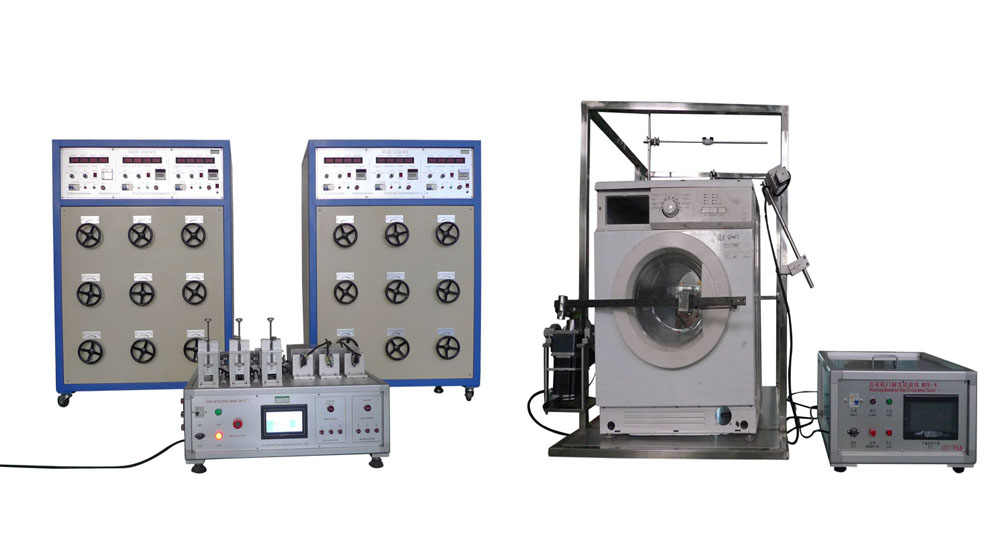

Endurance Switch Tester Images
