Digital Coupler Switch Tester

Name: Digital Coupler Switch Tester
Brand: HongCe
Price: 1 USD

Buy cheap Digital Coupler Switch Tester product

Brand Name : HongCe

Model Number : TR-4

Certification : third party calibration certificate

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 15 set per month

Delivery Time : 20 days

Packaging Details : Plywood

Price : Negotiatable

Standard : IEC60320-1,clause 18.2 figure 13

Display mode : Digital

Test temperature : 0-200℃

Test time : 0-99 hours and 59 minutes

Contact Now

Coupler Hot Resistance Tester Coupler Heating Testing Device IEC60320-1

Product Information:

The coupler heating device is designed and manufactured according to the IEC60320-1,clause 18.2 figure 13 standard requirements . It is used for testing the heat resistance of coupler in hot conditions and very hot conditions, this device adopts temperature control, precise digital display and durable.

Main Technical Parameters:

Model No.	TR-4
Standard	IEC60320-1 clause 18.2 and figure 13
Power Supply	AC120V, 50Hz or AC220V, 60HZ
Coupler inlets (as below):
10A heat resistance appliance inlet	Test 10A connector, test temperature 120℃ ± 2℃
10A very hot resistance appliance inlet	Test 10A connector, test temperature 155℃± 2℃
16A very hot resistance appliance inlet	Test 16A connector, test temperature 155℃ ± 2℃
Test temperature	0-200℃, can be preset
Test time	0-99 hours and 59 minutes, can be preset

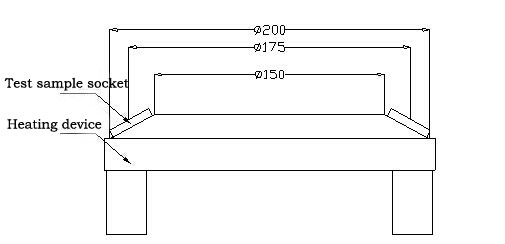

Coupler center distance	Uniform arrangement byΦ175 circular

Digital Coupler Switch Tester
