Small Audio Video Impact Testing Machine for Drop Resistance Performance Test

Name: Small Audio Video Impact Testing Machine for Drop Resistance Performance Test
Brand: HongCe
Price: 1 USD

Buy cheap Small Audio Video Impact Testing Machine for Drop Resistance Performance Test product

Brand Name : HongCe

Model Number : SH-14

Certification : Third part calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 20 set per month

Delivery Time : 20 working days

Packaging Details : plywood

Price : Negotiatable

Test object : Small Audio Video Equipment

Standard : IEC 60950, IEC 60065

Test : Drop test

Drop height : 750-1000mm

Drop floor : hardwood or Concrete base

Release mood : Pneumatic

Drop direction : surface, edge and corner drop

Mass of sample : 5kg or 7kg

Contact Now

Small Audio Video Equipment Drop Test Device

Description:

This device is suitable for verify the drop resistance performance of audio, video and similar electronic apparatus having a mass of 7kg or less, information technology equipment having a mass of 5 kg or less, and portable lamp.

Comply to standard IEC 60950-1 Clause 4.2.6, IEC 60598-1 Clause 4.13.4b), IEC 60065 Clause 12.1.14, IS 616-2010 etc.

Feature:

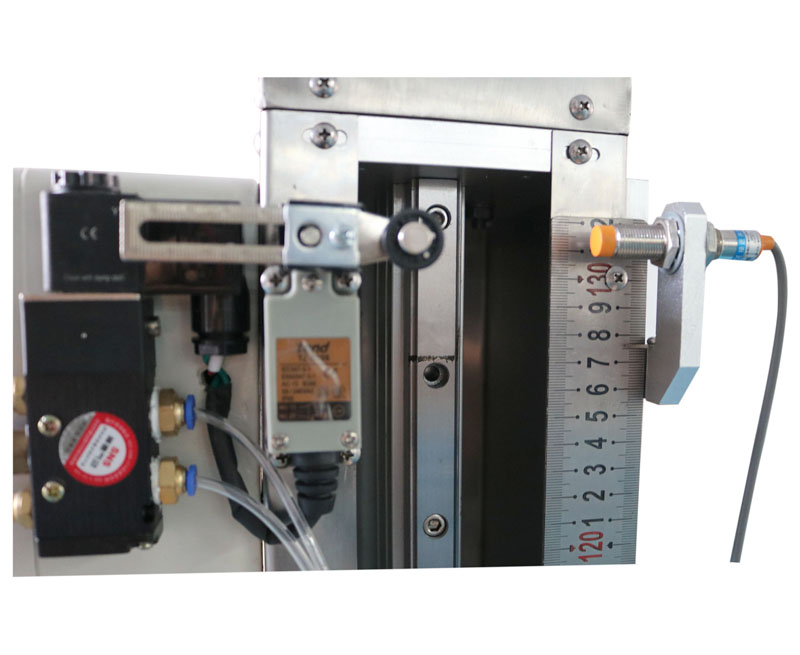

Also known as the single arm drop tester, carton drop test machine. Can carry on the multi direction drop to the packing product. In the test, the support arm rapid downward movement and then rotating, to ensure test sample free separate with the support arm. Samples free fall, angle error is less than 5 degrees, the impact of small vibration, stable and reliable, is the real surface, edge and corner drop test machine.

Specifications:

Model	SH-14	SH-14A
Release mode	Pneumatic	Pneumatic
Drop floor	hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, 10001000mm(51~60)mm	Concrete base, 1000*1000mm
Drop height	750mm or 1000mm	1000mm
Test sample	information technology equipment having a mass of 5 kg or less, and portable lamp	audio, video and similar electronic apparatus having a mass of 7kg or less
Standard	IEC 60950-1, IEC 60598-1	IEC 60065
