2000 mm Dropping Ball Impact Test Equipment Merchanical Strength Verification

Name: 2000 mm Dropping Ball Impact Test Equipment Merchanical Strength Verification
Brand: HongCe
Price: 1 USD

Buy cheap 2000 mm Dropping Ball Impact Test Equipment Merchanical Strength Verification product

Brand Name : HongCe

Model Number : SH-13

Certification : Third part calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 20 set per month

Delivery Time : 20 working days

Packaging Details : plywood

Price : Negotiatable

Test object : equipment enclosure

Standard : IEC 60950, IEC 60065, IEC 60598

Test : Drop impact test

Drop height : up to 2000mm

Impact steel ball : 110g, 130g, 64g, one each

Release mode : DC electromagnetic control

Drop direction : Vertical

Power supply : 220VAC 50Hz

Contact Now

Dropping Ball Impact Test Device

Description:

This device is suitable for drop impact test for equipment enclosure, verify the merchanical strength of equipment enclosure and kinds of materials, say plastic, ceramic, glass, acrylic fiber and other materials.

Comply to standard IEC 60950-1, IEC 60598-1, IEC 60065 etc.

Feature:

This device use a steel ball of certain weight, adjust to a certain height, make the ball free fall down to impact the sample. Judge the quality according to damage degree.

Specifications:

Power supply	220VAC 50Hz
Drop ball control mode	DC electromagnetic control
Impact steel ball	110g, 130g, 64g, one each
Dimension	5004502000mm
Weight	about 30kg
Test object	equipment enclosure
Test	drop impact test
Drop height	up to 2000mm
Impact steel ball	110g, 130g, 64g, one each
Drop direction	Vertical

2000 mm Dropping Ball Impact Test Equipment Merchanical Strength Verification

Product Tags:

impact test machine

pendulum impact testing machine

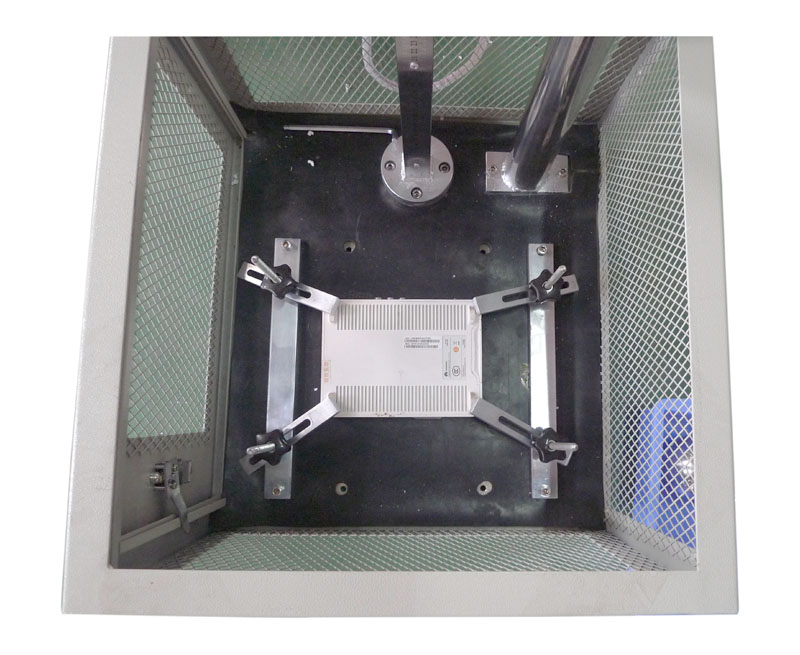

2000 mm Dropping Ball Impact Test Equipment Merchanical Strength Verification Images
