IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Machine Driven By Pneumatic

Name: IEC 603351 Clause 2216 Automatic Cord Reels Endurance Testing Machine Driven By Pneumatic
Brand: HongCe
Price: 1 USD

Buy cheap IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Machine Driven By Pneumatic product

Brand Name : HongCe

Model Number : HJ0605

Certification : Third part calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 30 days

Packaging Details : Plywood

Gas Source : Compressed air 5 ~ 7kg / cm²

Test Speed : 30 cycles / min

Test Cycles : 0~9999 times

Drive Mode : Pneumatic

Withdrawable Angle : 30~70°, can be preset

Withdrawable Stroke : Maximum 1000mm, can be adjusted

Contact Now

IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Equipment Drive By Pneumatic

Standard: IEC 60335-1 Clause 22.16 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application: It is used to check the automatic cord reels shall be constructed so that they do not cause

– undue abrasion or damage to the sheath of the flexible cord;

– breakage of conductor strands;

– undue wear of contacts.

Test sample: Automatic cord reels of household appliances and similar electrical appliances.

Feature: The device adopts a multi-functional fixture, large work surface, can test cord reels up to 300cm, test speed (5-30 times / min) is adjustable, and it is suitable for most test electrical products.

Parameters:

Input Power	220V/50HZ
Gas Source	Compressed air 5 ~ 7kg / cm²
Test Speed	30 cycles / min (or at the maximum rate allowed by the construction of the cord reel if this is less)
Test Cycles	0~9999 times, the test device will stop working automatically when the preset test cycles are finished
Drive Mode	Pneumatic
Withdrawable Angle	30~70°, can be preset
Fixture	Quick clamping fixtures, easy for clamping the test sample
Withdrawable Stroke	Maximum 1000mm, can be adjusted

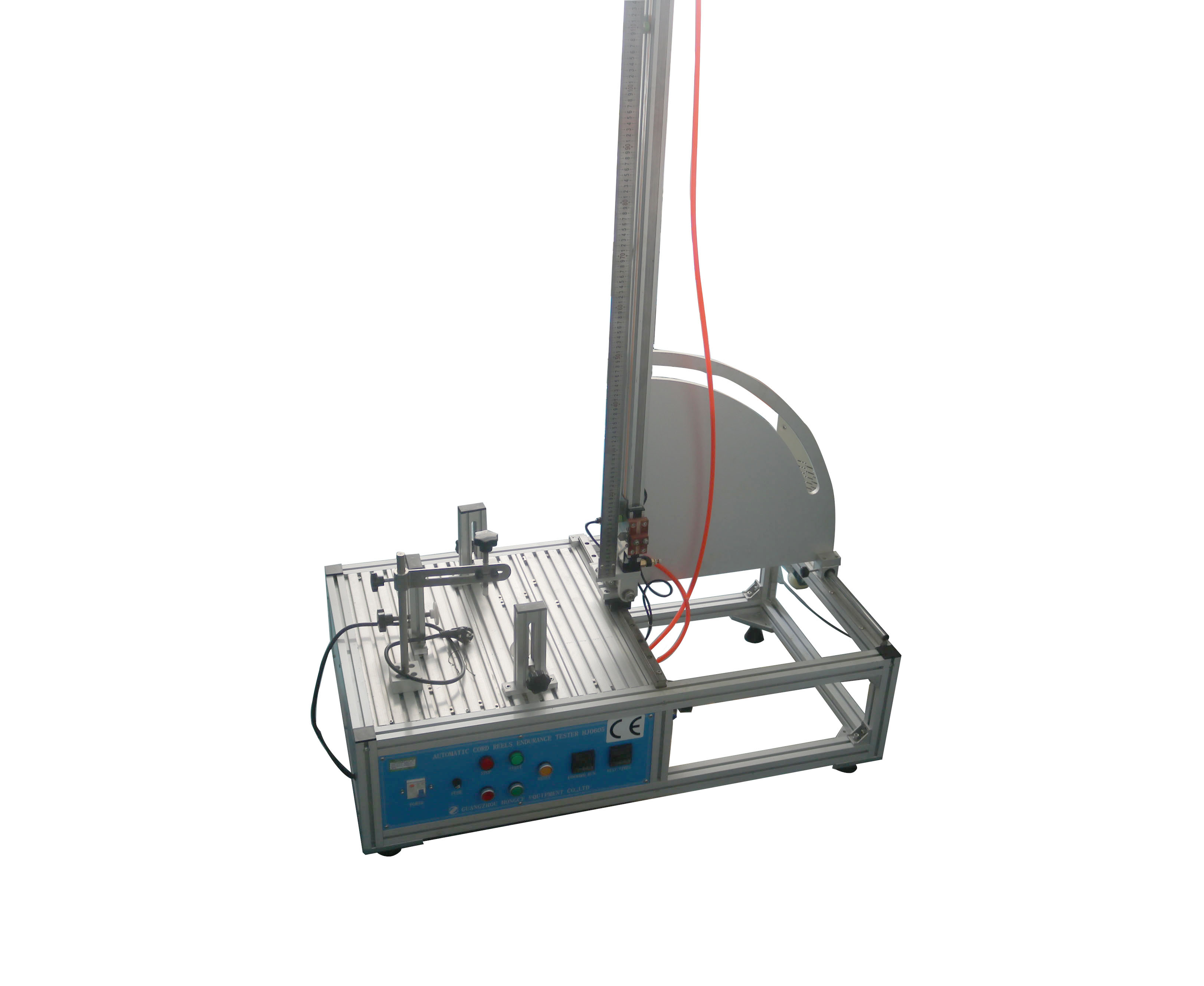

Picture for reference:

IEC 60335-1 Clause 22.16 Automatic Cord Reels Endurance Testing Machine Driven By Pneumatic
