HC-TA1 UL498 Electrical Appliance Tester 5-15R , 5-20R , 6-15R Terminal Abuse Tester

Name: HCTA1 UL498 Electrical Appliance Tester 515R 520R 615R Terminal Abuse Tester
Brand: HongCe
Price: 1 USD

Buy cheap HC-TA1 UL498 Electrical Appliance Tester 5-15R , 5-20R , 6-15R Terminal Abuse Tester product

Brand Name : HongCe

Model Number : HC-TA1

Certification : Calibration Certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T

Delivery Time : 30 days

Packaging Details : Plywood

Price : Negotiatable

Standard : UL498

Receptacles : 6-15R, 6-20R

Used For : conductor insertion

Contact Now

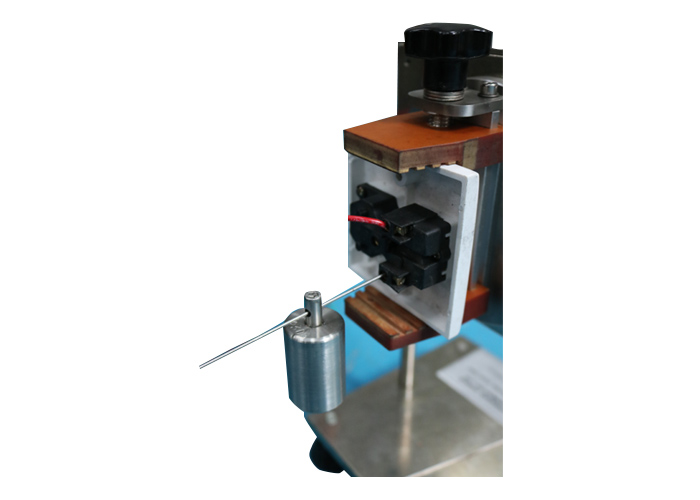

Terminal Abuse Tester

Product Introduction:

This test device for terminal abuse test as per UL498 Cl. 129 figure 129.1~129.2.

The ﬂush and self-contained receptacles having a 5-15R, 5-20R, 6-15R, or 6-20R conﬁguration used for

the conductor insertion and retention test and the conductor push-in test are to be tested through this test apparatus.

Picture for reference:

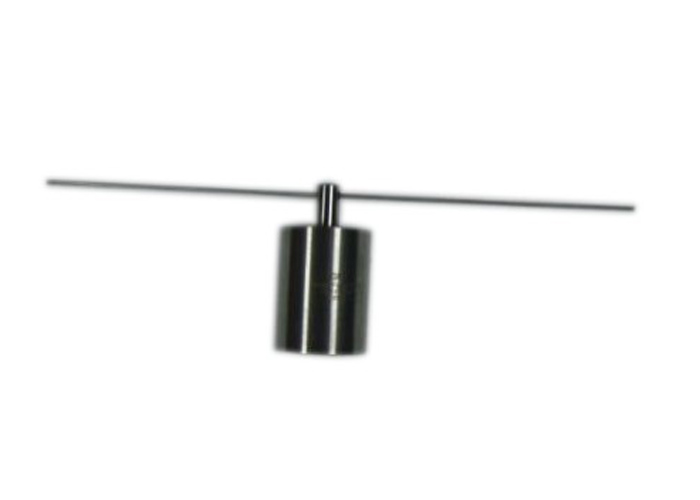

No. 14 AWG Test pin & weight

Operation:

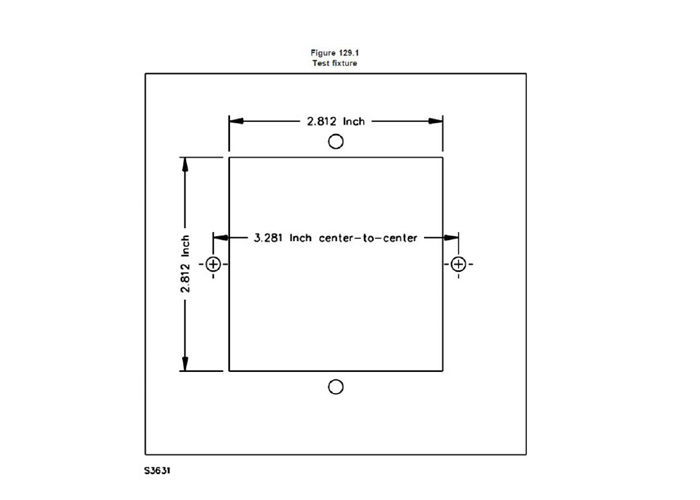

Each receptacle is to be mounted in the test ﬁxture shown in Figure 129.1 with its face in a vertical plane. The test pin shown in Figure 129.2 is then to be fully inserted into the ″Push-In″ terminal opening. An 8-ounce (0.23-kg) weight is to be gradually suspended from the test pin 6 inches (152 mm) from the plane of the terminal opening. The weight is to be applied for one minute, following which the weight is to be removed. The application of the weight is to be repeated with the receptacle rotated 90, 180 and 270 degrees for a total of four applications per receptacle.

Picture for reference:
